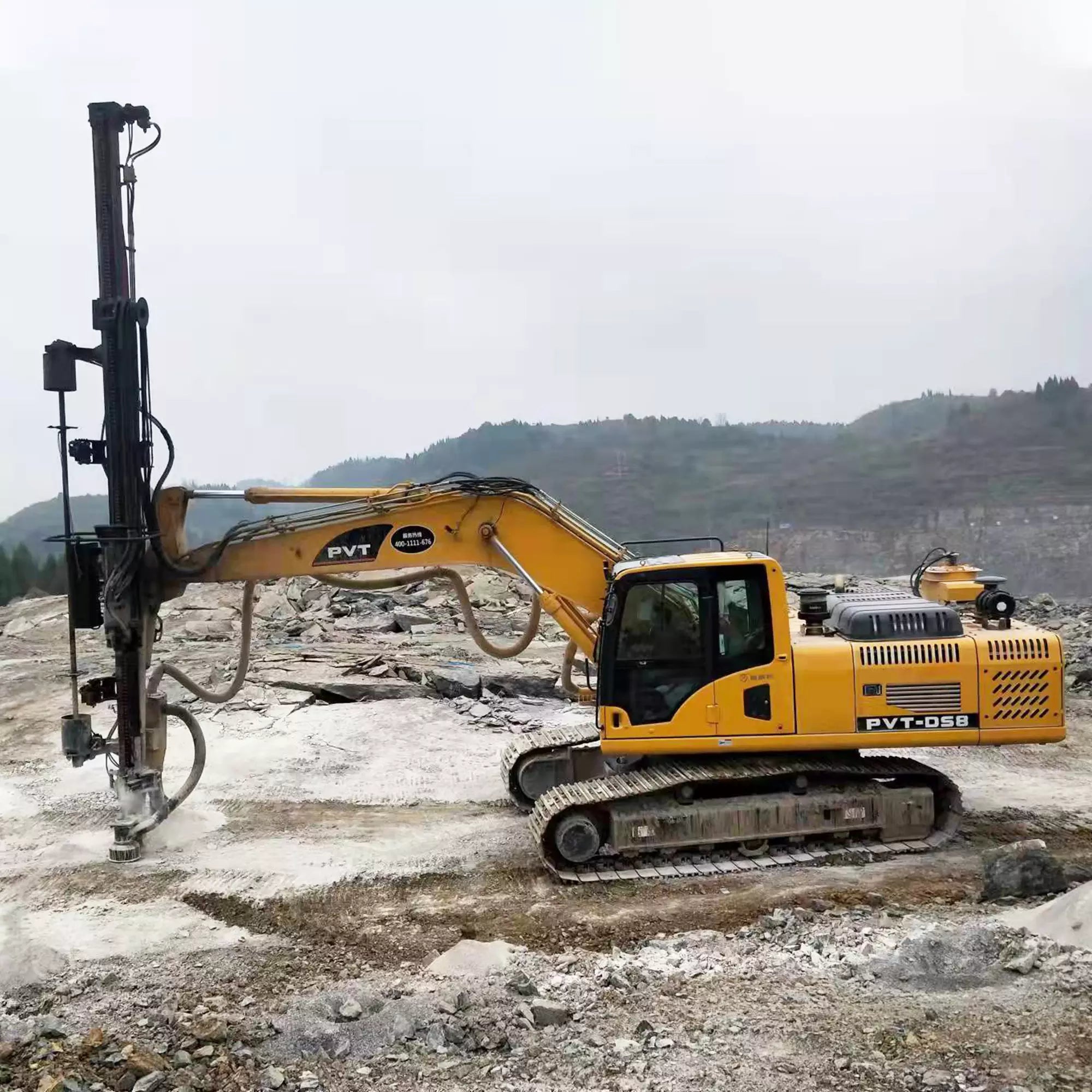

Mobility and Adaptability: Equipped with a 360° rotating platform and tracked walking mechanism, offering excellent mobility; robust structural design suitable for frequent site relocation and continuous operation.
Operating Performance: Integrated hydraulic system (domestically leading design); employs energy-saving technologies compliant with certified manufacturing standards.
Operating Environment: Temperature-controlled cab with air conditioning; open layout for easy maintenance and operation.
|
Impact power(kW) |
18/21(optional) |
|
Hole Range(mm) |
φ76～102/φ76～115 |
|
Drill rod |
T38,T45 / T45,T51 |
|
Hole depth(mm) |
0~6000 |
|
Deflection angle |
L/R 20° |
|
Air compressors |
screw-type |
|
Air compressor flow rate(m3/min) |
6 |
|
Engine power/speed |
127kW/2200rpm |
|
Hydraulic flow rate(L/min) |
220×2 |
|
Dust collector air volume(m3/min) |
24max |
|
Crawling speed(km/h) |
2.9/4.3 |
|
Gradeability |
50°(30°) |
|
L×W×H(mm) |
14100×2800×2977 |
|
Weight(kg) |
21000 |
1. What rock formations is this blasting drill suitable for?
It can meet the drilling needs of hard rocks such as iron ore, granite, basalt, and limestone.
2. What are the drilling diameter and depth?
Drill diameter φ76-115mm, single hole drilling depth up to 6 meters.
3. What is the impact power?
Impact power 18-21kW optional, powerful.
4. What are the features of the hydraulic system?
Integrated hydraulic system (domestically leading design), using energy-saving technology that meets certified manufacturing standards.
5. What are the features of the rotary platform?
Equipped with a 360° rotary platform and crawler walking mechanism, it has good mobility and is suitable for frequent site relocation and continuous operation.
6. How is it shipped overseas?
Shipped by sea in a 40-foot flatbed container, the entire machine is shipped.
7. What is the delivery time?
Standard models are shipped approximately 30 days after payment.
8. Are English materials and training provided?
English operation manuals and video tutorials are provided.
9. What is the cab configuration?
A climate-controlled cab equipped with air conditioning; the open layout facilitates maintenance and operation.
10. What is the air compressor configuration?
A screw air compressor is standard, with a displacement of 6 m³/min, meeting the needs of drilling operations.
11. What are the applicable operating scenarios?
Earth excavation and blasting drilling operations in engineering fields such as highways, railways, industrial parks, and urban construction.
12. What are the optional configurations?
A dry dust collection system is optional to meet the requirements of specific operating environments.
13. What payment methods are supported?
T/T and letters of credit at sight are supported.
