Mountain and Rural Engineering

In tropical plantations, hilly farms, or remote mountainous areas, the biggest challenge is often not the project itself, but the transportation of materials. During the rainy season, roads become muddy, and ordinary trucks frequently get stuck—the ground pressure of tires on soft ground can exceed 200 kPa, making them easily sink into the mud. Materials can't be transported in, workers are idle, and the project is delayed day by day. When renovating orchards or repairing terraces, large excavators cannot enter the narrow spaces between rows, and manual excavation is inefficient and costly. Rural house construction requires hoisting precast slabs and bricks; the traditional method relies on scaffolding and people pulling ropes, which is both unsafe and inefficient.
Discuss Your Project
Crawler DumperMini ExcavatorTricycle CraneHand-Held Road RollerSkid Steer

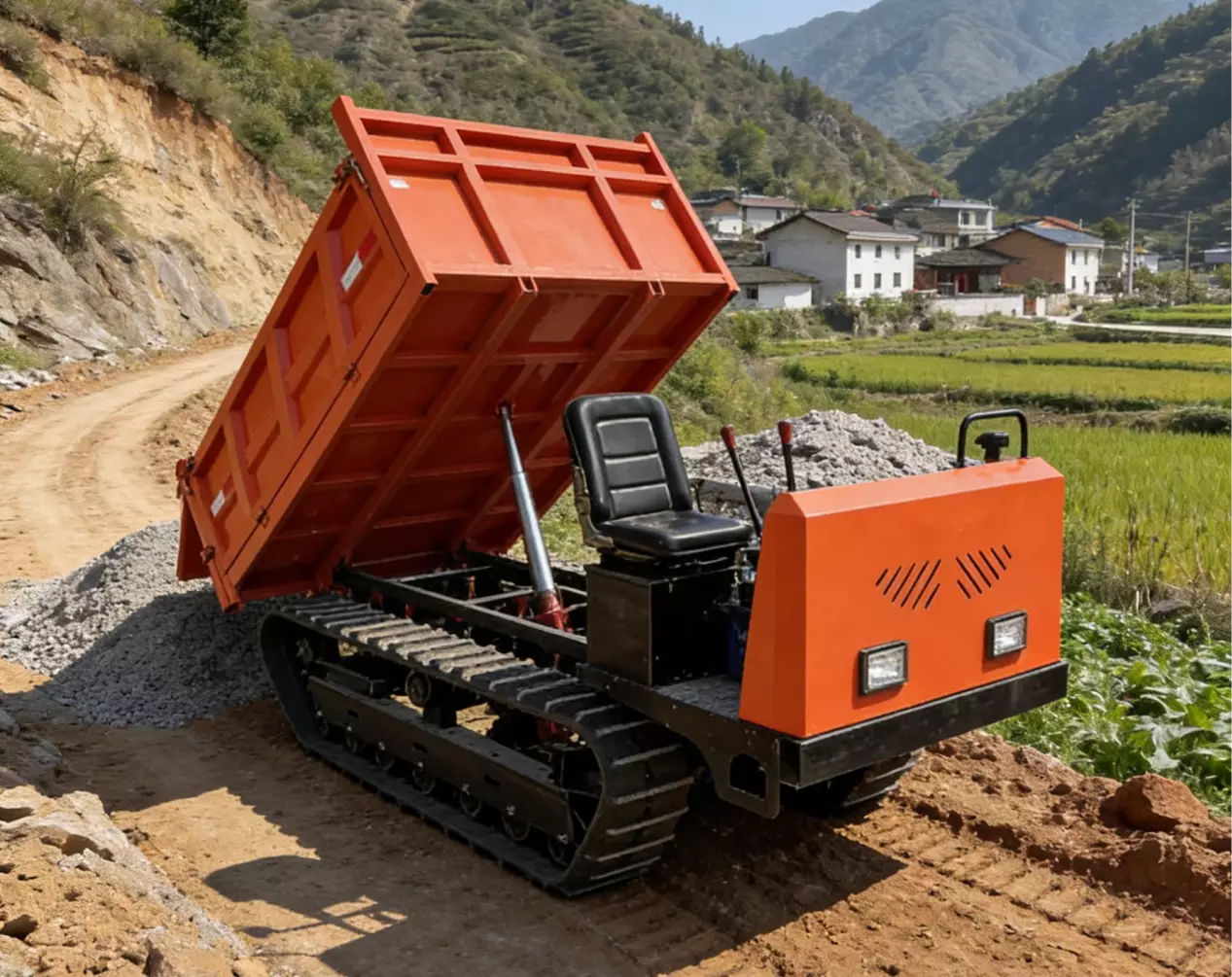

Crawler Dumper

In mountainous rural areas, the biggest challenge is muddy roads during the rainy season. Ordinary truck tires have a ground pressure exceeding 200 kPa, making them prone to getting stuck in mud. The PIVOT tracked transporter, however, has a ground pressure of only 28 kPa—lower than the pressure of an adult standing upright—allowing it to traverse swamps, rice paddies, and slippery slopes with ease, preventing it from getting stuck. A single 3-ton load can be transported, equivalent to the daily work of more than ten workers. Yunnei engine parts are universal, facilitating maintenance and allowing for easy upkeep even in remote mountainous areas. It can be equipped with a dump truck and a crane, making it not only a transportation tool but also a work platform in mountainous regions.
Engine Model: Yunnei YN27/21KW
Rated Load: 3 tons
Traffic Speed: 0-15km/h
Climbing Ability: 30°
Cargo Box Dimensions: 2.0×1.6×0.6 meters
Total Weight: 2.8 tons
Ground Pressure: 28kPa (Based on the design standard of tracked vehicles of the same class)
Learn More

Comparison of the passability of tracked transport vehicles and ordinary trucks

Comparison Dimensions

Ordinary Truck

PIVOT Tracked Transporter

Ground pressure

200-300kPa

28kPa

Muddy roads during rainy season

High rate of vehicles getting stuck

Passable

Climbing ability

Around 20°

30°

Load capacity

3-5ton

3ton

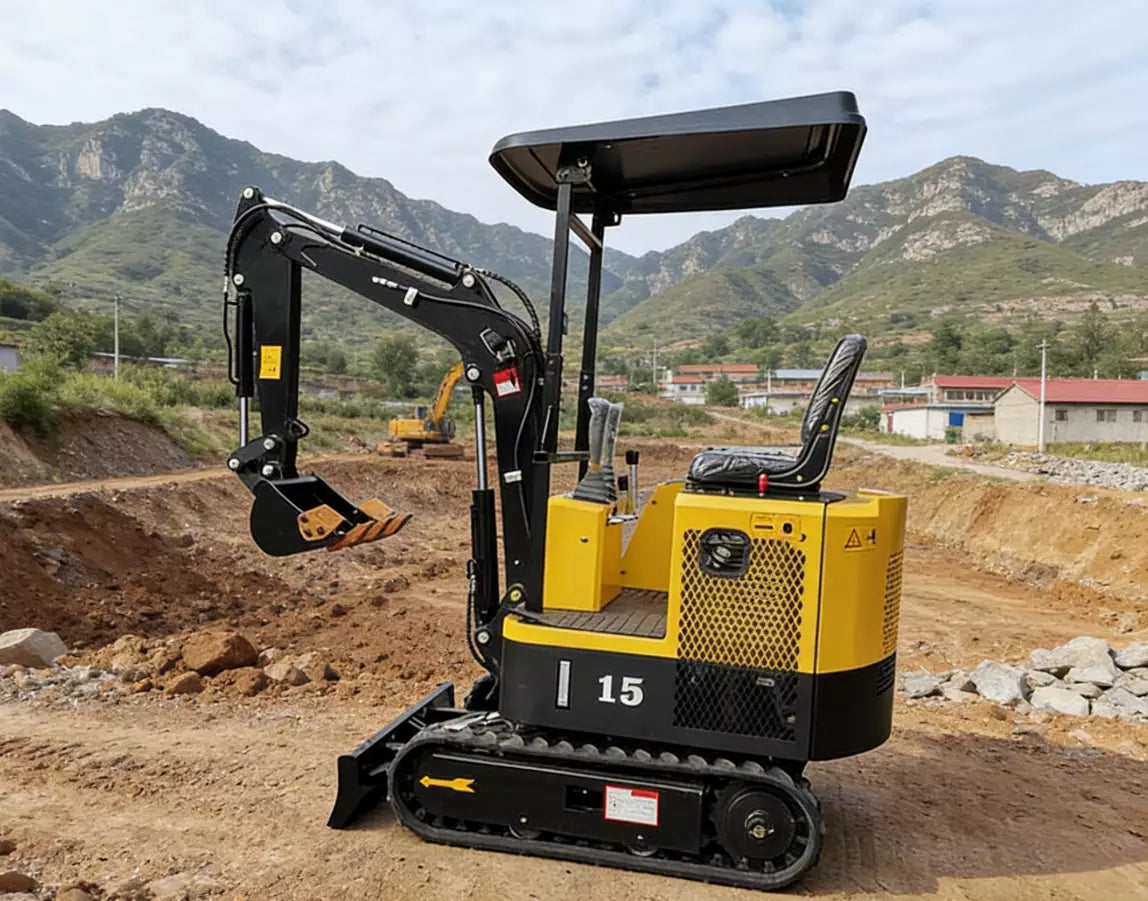

Mini Excavator

When renovating orchards or repairing terraces, large excavators cannot navigate the narrow rows—standard orchard row spacing is 1.2 meters, while the PIVOT mini excavator, with a width of only 980mm, can easily pass through. Its 13.6kW power drives a 1.2-ton body, offering a higher power-to-weight ratio than its competitors, making digging in hard soil and gravel effortless. It can be equipped with a hydraulic breaker to break tree roots and rocks, and a log grapple to transport pruned branches, allowing one machine to perform multiple orchard management tasks.
Power: 13.6kW
Operating Weight: 1200kg
Bucket Capacity: 0.04m³
Maximum Digging Depth: 2.3m
Maximum Digging Height: 3.6m
Maximum Unloading Height: 2.5m
Travel Speed: 2.5km/h
Climbing Ability: 30°
Ground Pressure: 28kPa
Learn More

Comparison of parameters of mini excavators in the same class

Comparison Dimensions

Mini Excavators of the Same Level (Industry Average)

PIVOT Mini Excavator

Power

10-12kW

13.6kW

Drilling Depth

2.0-2.2meter

2.3meter

Operating Weight

1.0-1.3ton

1.2ton

Ground Voltage

Around 30 kPa

28kPa

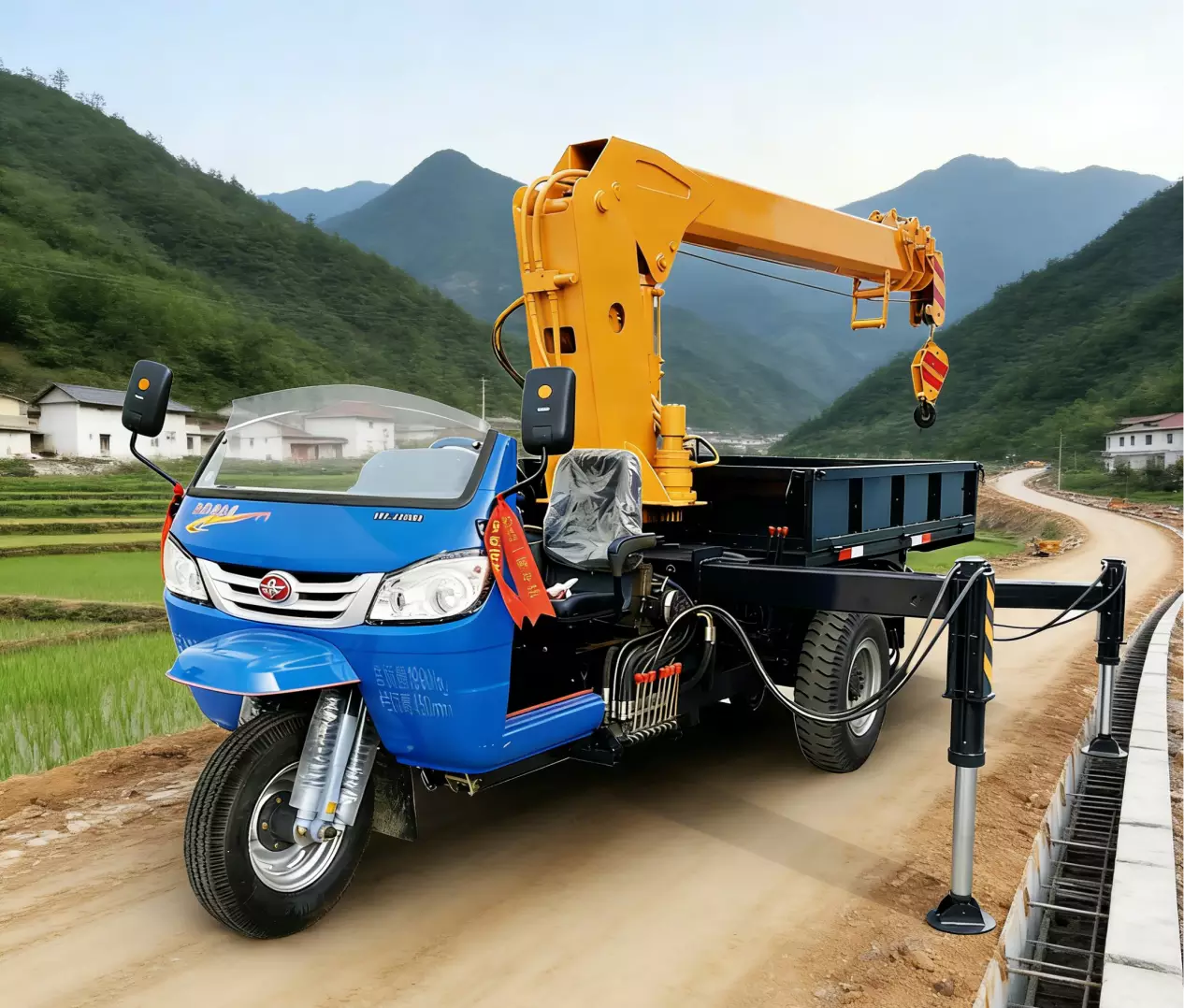

Tricycle Crane

In rural housing construction, hoisting precast slabs, bricks, tiles, and steel bars traditionally relies on scaffolding and manual rope pulling, which is both dangerous and inefficient. The PIVOT three-wheeled crane uses a three-wheeled chassis, allowing direct access to village lanes and courtyards without the need for a trailer. Its small turning radius allows for flexible maneuvering even on narrow village roads. Operation is simple; ordinary workers can be trained in just 2 hours and are ready to work, replacing manual scaffolding and lifting, significantly improving both safety and efficiency.
Lifting capacity: 3 tons
Lifting height: 8 meters
Motor power: 11kW
Travel speed: 30km/h
Total weight: 3.2 tons
Learn More

Comparison of three-wheeled cranes and manual hoisting

Comparison Dimensions

Manual scaffolding and hoisting

PIVOT Tricycle Crane

Lifting capacity

Relies on multi-person collaboration

Lifting capacity of 3 tons

Relocation method

Requires disassembly and assembly of shelves

Self-propelled, no trailer required

Safety

High risk

Mechanical operation, safe and controllable

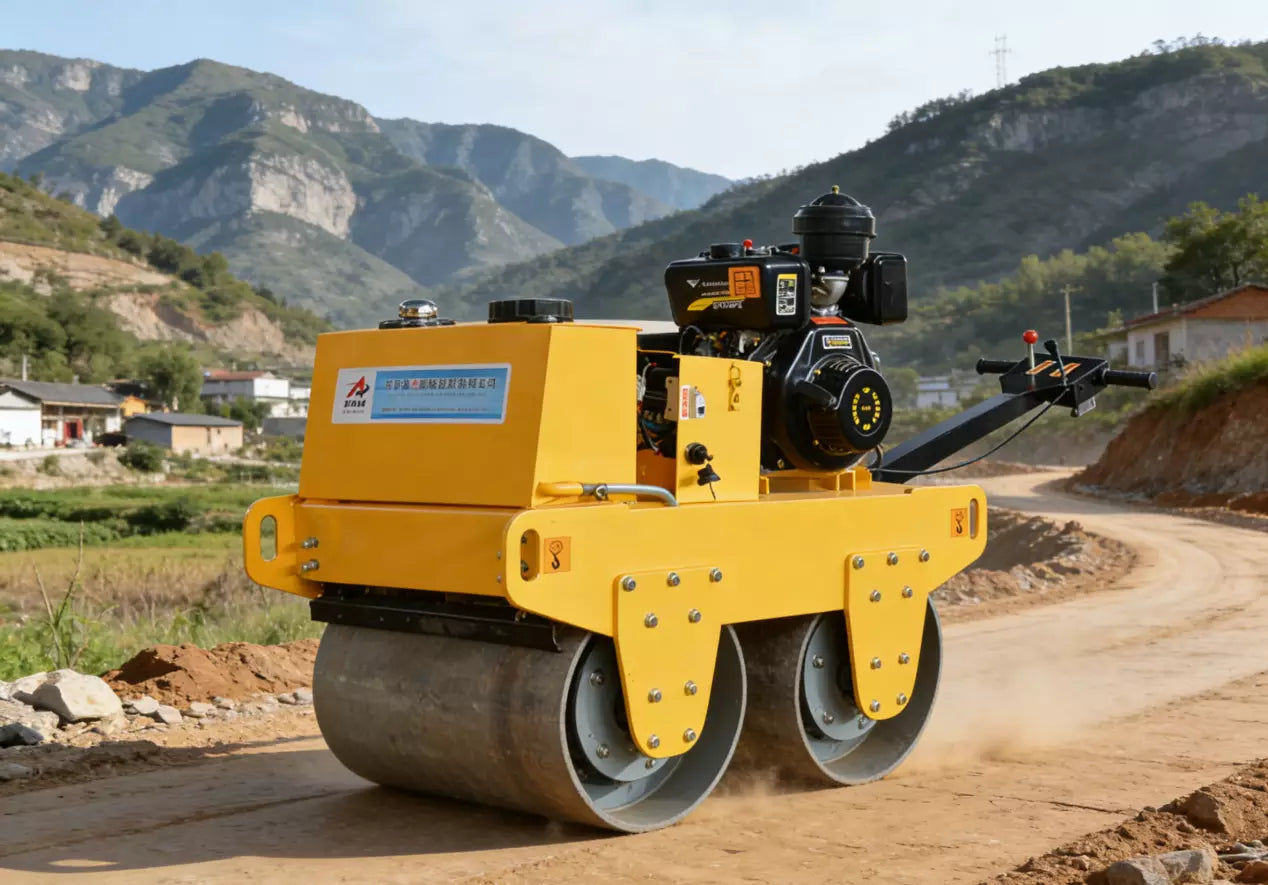

Hand-Held Road Roller

After rural road repairs, courtyard hardening, and threshing ground compaction, the ground needs to be compacted. Large road rollers cannot enter the yard or reach the base of walls. The PIVOT walk-behind road roller has a narrow body, allowing it to enter courtyards, threshing grounds, and the edges of ditches for operation. With a vibration force of 25kN and a compaction depth of 300mm, the density is consistently above 95%—manual compaction can only achieve 80-85%. One person can easily complete the compaction work that would otherwise require multiple people and several days.
Power: 5.5kW
Weight: 700kg
Vibration Force: 25kN
Amplitude: 0.5mm
Climbing Ability: 30°
Learn More

Comparison of efficiency between hand-held road rollers and manual compaction

Comparison Dimensions

Manual compaction

PIVOT hand-held road roller

Compaction depth

15-20cm

30cm

Density

80-85%

≥95%

Operating speed

10-15㎡/Hour

200-300㎡/Hour

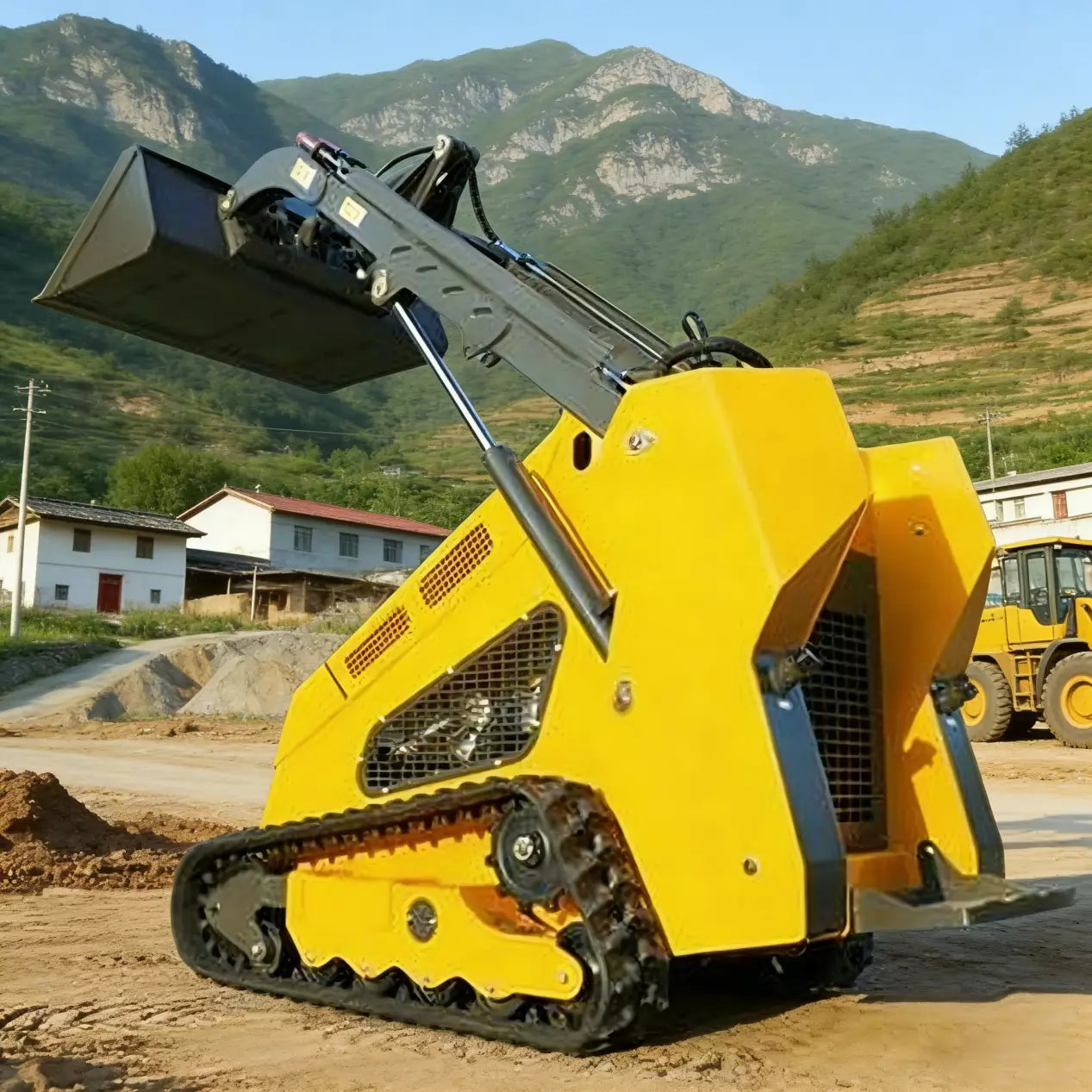

Skid Steer

Rural operations are diverse: cleaning livestock farms, transporting straw, leveling sites… a single skid steer loader can handle all these tasks. 360° on-the-spot turning allows for easy maneuverability in narrow livestock farms and stockpiles. The quick-change device requires no tools, allowing switching from the bucket to the log grapple or sweeper in minutes. One machine replaces multiple specialized pieces of equipment, making it especially suitable for scattered rural work sites.
Power: 36.8kW
Rated Load: 900kg
Machine Weight: 3400kg
Travel Speed: 0-18km/h
Climbing Ability: 30°
Attachments: Bucket, Hydraulic Breaker, Log Grapple, Sweeper, Ditcher
Learn More

Efficiency comparison between skid steer loaders and manual handling

Comparison Dimensions

Manual handling

PIVOT Skid Steer

Single transport capacity

50kg

900kg (rated load)

Attachment switching

—

No tools required, completed in minutes.

Customer Value

Engineer Value

Engineer Value

Complete parameter tables accurately match working conditions.

Tracked transporter ground pressure data can be used to assess soft ground passability.

Mini excavator digging depth and unloading height meet the needs of orchard and terraced field operations.

Procurement Value

Procurement Value

Cloud-based engine parts are universal, facilitating maintenance.

Transparent product parameters facilitate technical tender preparation.

Multiple products cover the same scenarios, simplifying the procurement process.

Owner Value

Owner Value

Uninterrupted operation during the rainy season, ensuring year-round production capacity.

Multi-purpose machines (mini excavators can be fitted with interchangeable attachments, skid steer loaders can be fitted with 20+ types of attachments), reducing equipment investment.

A single transport capacity of a tracked vehicle is equivalent to 15 workers, significantly reducing transportation costs, with an investment payback period typically not exceeding two years.
