Municipal Engineering

The biggest limitation in city center sidewalk renovation, sewer repair, and street light installation is space. Work areas are surrounded by pedestrians, vehicles, and buildings, making it impossible for large equipment to enter. A single project often requires several processes such as crushing, shoveling, and compaction, making it difficult to coordinate multiple pieces of equipment. Setting up barriers causes traffic congestion and constant complaints. Ordinary lifting equipment cannot access narrow alleyways, side roads, or inside buildings.
Discuss Your Project
Skid SteerSpider CraneTricycle CraneHand-Held Road RollerCanal MachineMini Excavator

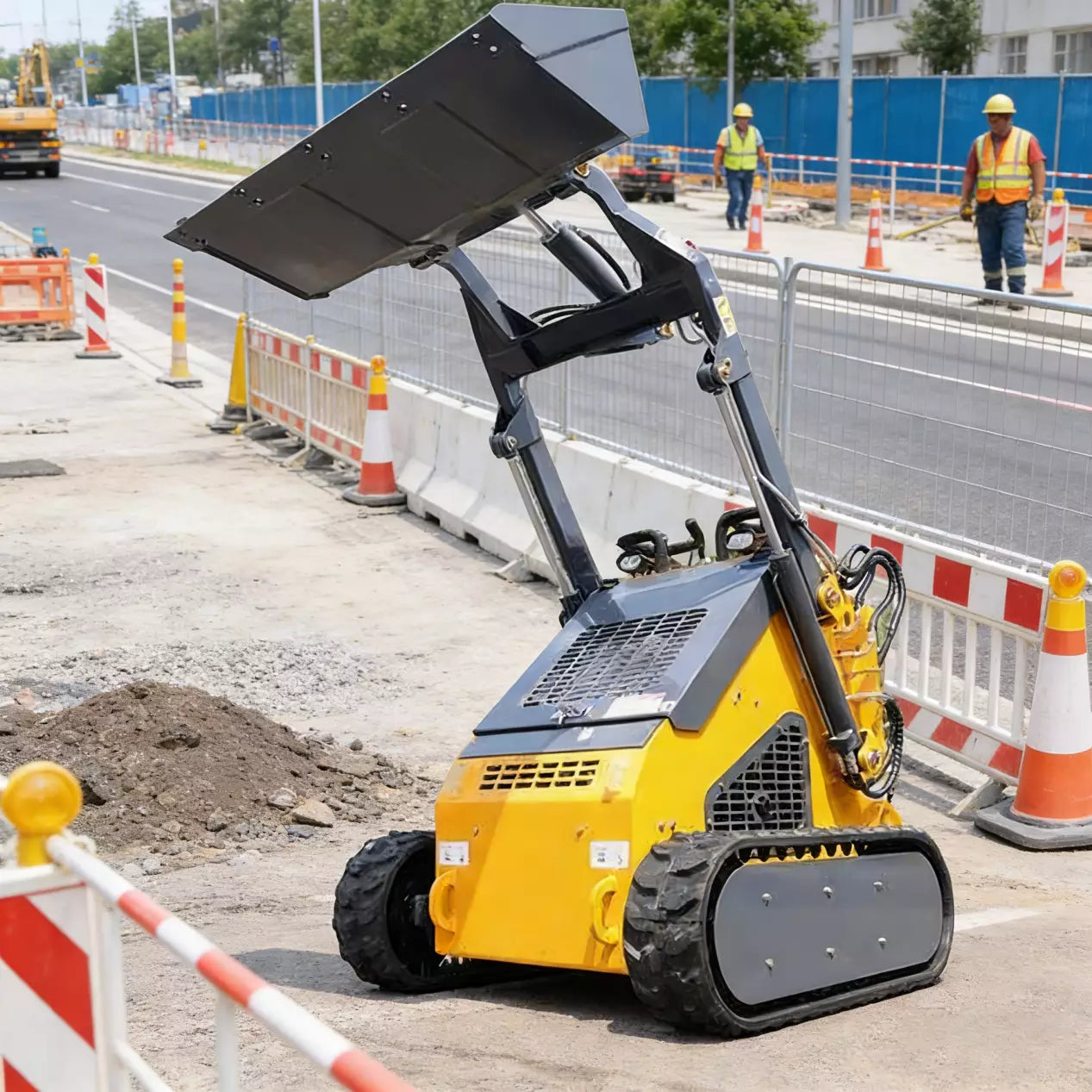

Skid Steer

When renovating sidewalks and repairing roads in the city center, the biggest limitation is space. The PIVOT skid steer loader, with a width of 1.5 meters, can easily pass through pedestrian gates (international standard gate width is 1.5 meters). Using a hydraulic breaker to break up the old road surface, switching to the bucket to clear debris, and then switching to the sweeper to finish—one machine completes three tasks without the need for multiple machines. 360° on-the-spot turning eliminates the need for reversing or turning around on narrow auxiliary roads. Operating noise is 75-85dB, allowing for nighttime construction and avoiding daytime traffic peaks.
Power: 36.8kW
Rated Load: 900kg
Machine Weight: 3400kg
Travel Speed: 0-18km/h
Climbing Ability: 30°
Attachments: Bucket, Hydraulic Breaker, Log Grapple, Sweeper, Trencher
Learn More

Skid Steer Loader Comparison

Comparison Dimensions

Case SR130 Skid Steer Loader

PIVOT Skid Steer

Power

34.3kW

36.8kW

Rated Load

590kg

900kg

Width

1.5m

1.5m

Steering Capacity

360°Turning in place

360°Turning in place

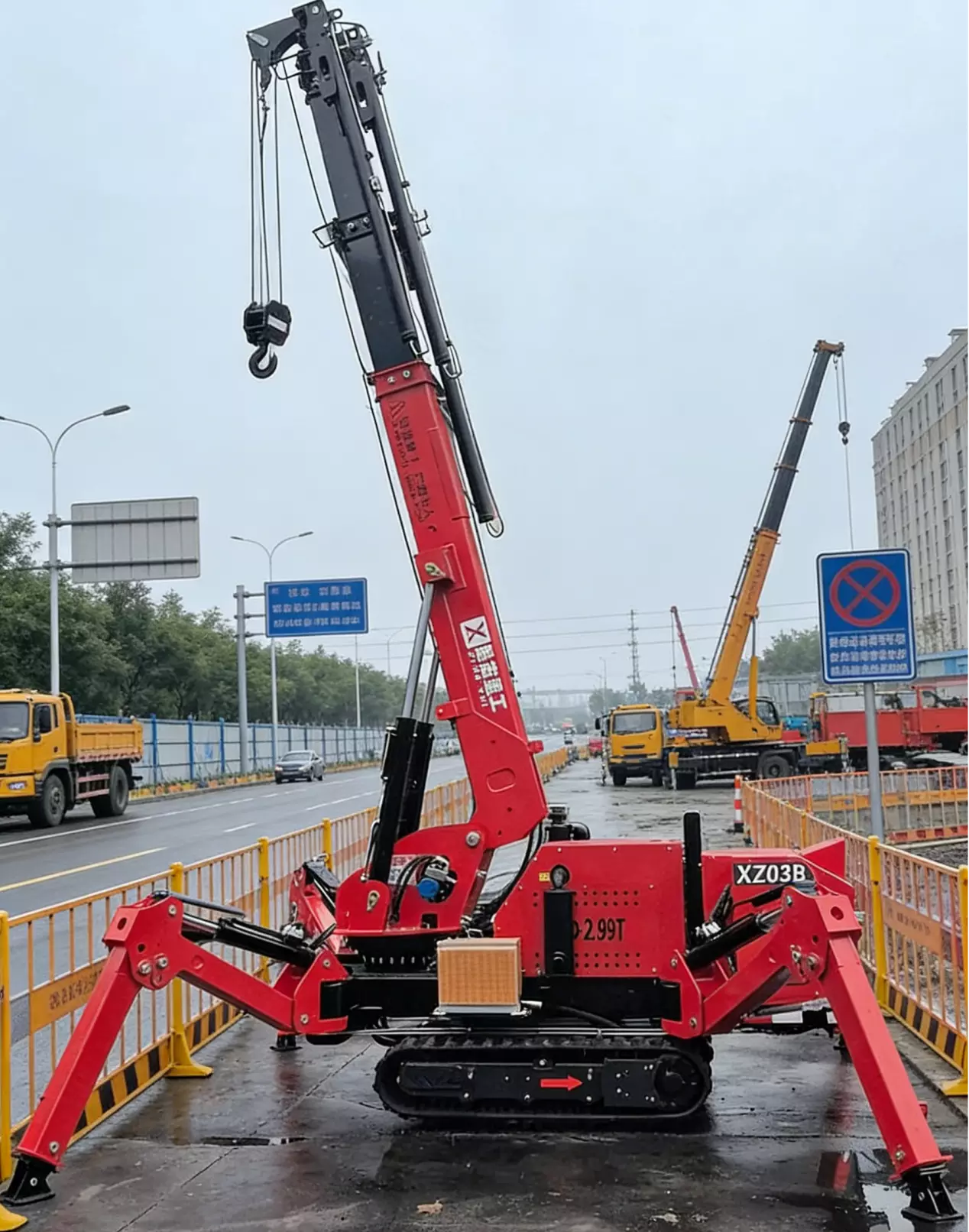

Spider Crane

Power emergency repairs, street light installations, and curtain wall maintenance often occur in narrow streets or inside buildings, inaccessible to ordinary truck cranes. The PIVOT Spider crane has a minimum passability of only 0.8 meters, allowing it to enter narrow alleys and even use freight elevators for access. Its four hydraulic outriggers can be independently leveled, ensuring stable operation on steps and slopes. Wireless remote control operation allows the operator to stand in a safe position, eliminating blind spots. Replacing equipment in substations, installing glass curtain walls on rooftops, and installing equipment in subway stations—these are tasks that traditional cranes cannot perform, but the Spider crane can handle them all.
Rated lifting capacity: 1 ton
Maximum lifting height: 16 meters
Overall dimensions: 2.8 × 0.8 × 1.7 meters
Overall weight: 1.8 tons
Climbing ability: 30°
Learn More

Spider crane space adaptability

Comparison Dimensions

Traditional truck crane

PIVOT Spider Crane

Minimum passability width

>2.5m

0.8m

Can it fit into the elevator?

no

yes

Outrigger leveling

Requires a level site

Can be independently leveled to adapt to slopes

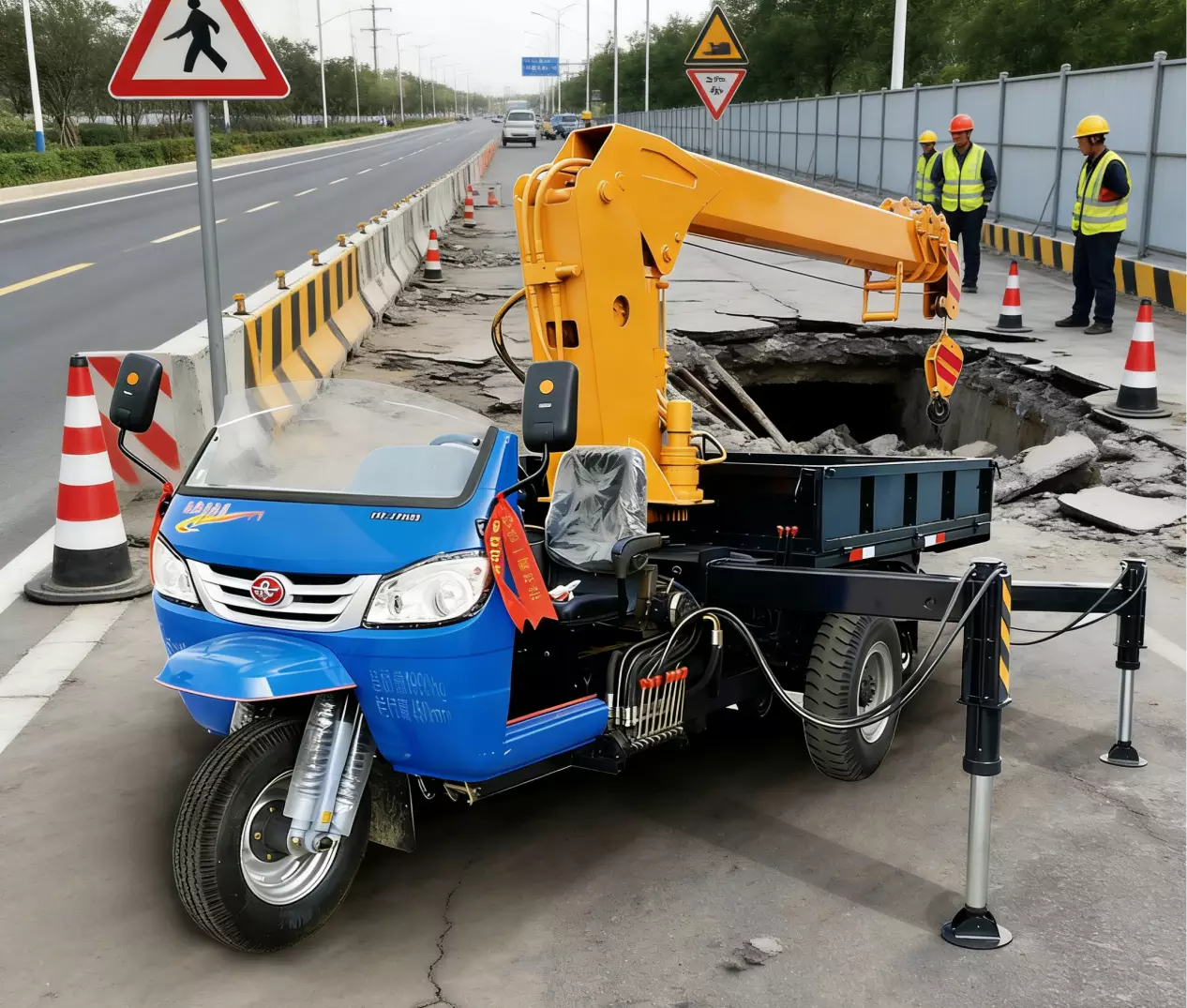

Tricycle Crane

Replacing manhole covers, hoisting small pipes, and planting roadside trees—these light lifting tasks are too costly with large cranes and laborious with manual labor. The PIVOT three-wheeled crane can drive itself to the site without a trailer, has low road load requirements, and can enter narrow community streets. Its 3-ton lifting capacity is sufficient for routine municipal maintenance needs, and it is easy to operate; one person can complete the lifting operation.
Lifting capacity: 3 tons
Lifting height: 8 meters
Motor power: 11kW
Travel speed: 30km/h
Total weight: 3.2 tons
Learn More

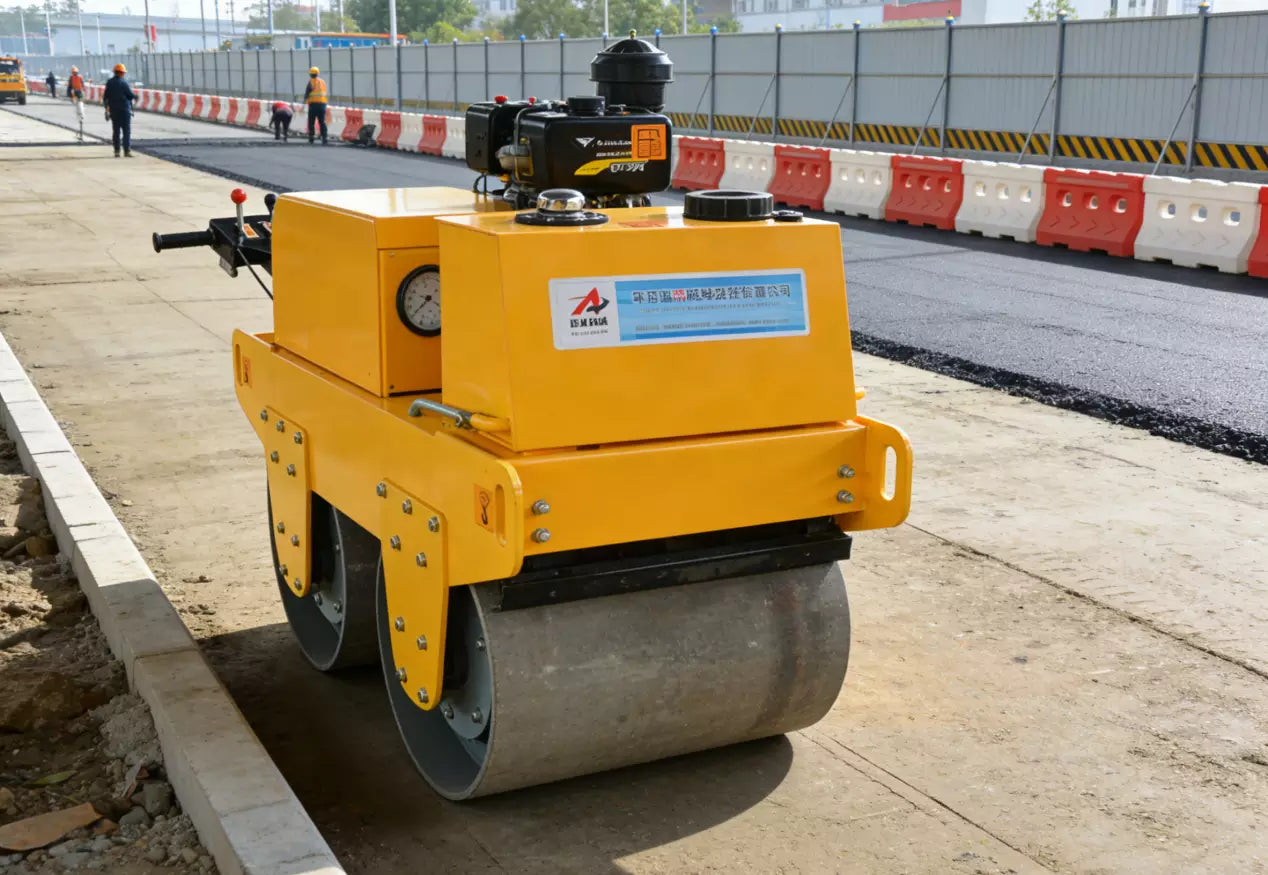

Hand-Held Road Roller

After backfilling the pipeline trench, thorough compaction is essential to prevent road subsidence. Large road rollers cannot enter the trench, and manual compaction is ineffective. The PIVOT walk-behind road roller can directly enter the trench for operation. Its narrow body allows it to compact close to manhole covers and wall corners. With a vibration force of 25kN, a compaction depth of 300mm, and a density ≥95%, it ensures backfill quality and prevents road subsidence.
Power: 5.5kW
Weight: 700kg
Vibration Force: 25kN
Amplitude: 0.5mm
Climbing Capability: 30°
Learn More

Comparison of hand-held road rollers and manual compaction

Comparison Dimensions

Manual compaction

PIVOT Hand-Held Road Roller

Compaction depth

15-20cm

300mm（Product Parameters）

Vibration force

—

25kN（Product Parameters）

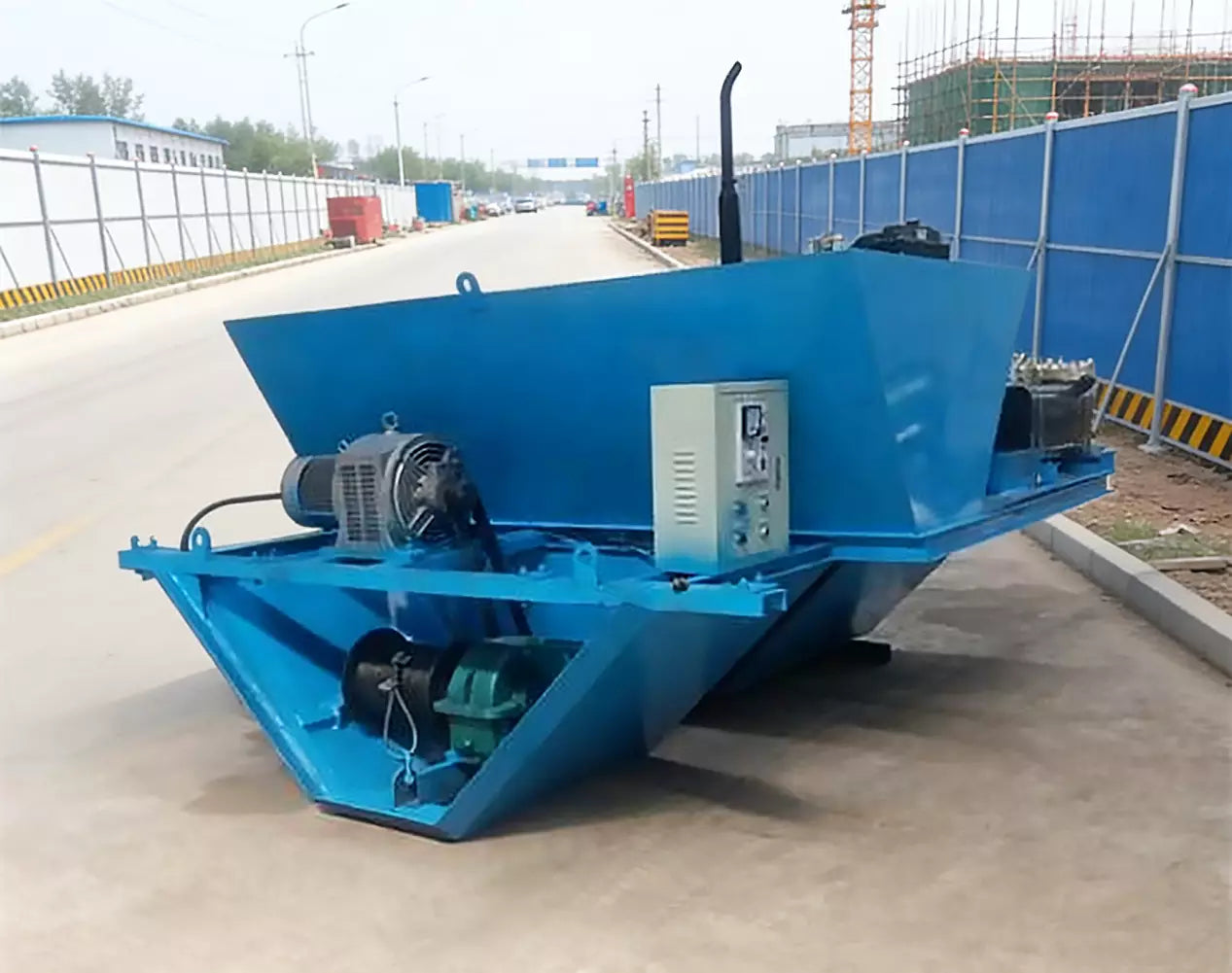

Canal Machine

When drainage ditches on both sides of roads need to be constructed quickly, manual bricklaying is inefficient and produces poor quality. The PIVOT drainage ditch forming machine can form 400 meters per day in one pass—more than 20 times faster than manual bricklaying. It can form trapezoidal, U-shaped, rectangular, and other cross-sections to adapt to different design specifications. The concrete density is ≥95%, the surface is smooth, the impermeability is good, and almost no maintenance is required afterward.
Daily construction efficiency: 400 meters
Formed channel size: 300-1200mm
Machine power: 15kW
Operators: 2-3 people
Learn More

Comparison of water channel forming machine and manual bricklaying

Comparison Dimensions

Manual bricklaying

PIVOT Canal Machine

Construction speed

5-10 meters/person.day

400m/day（Product Parameters）

Operators

10-20 people

2-3people（Product Parameters）

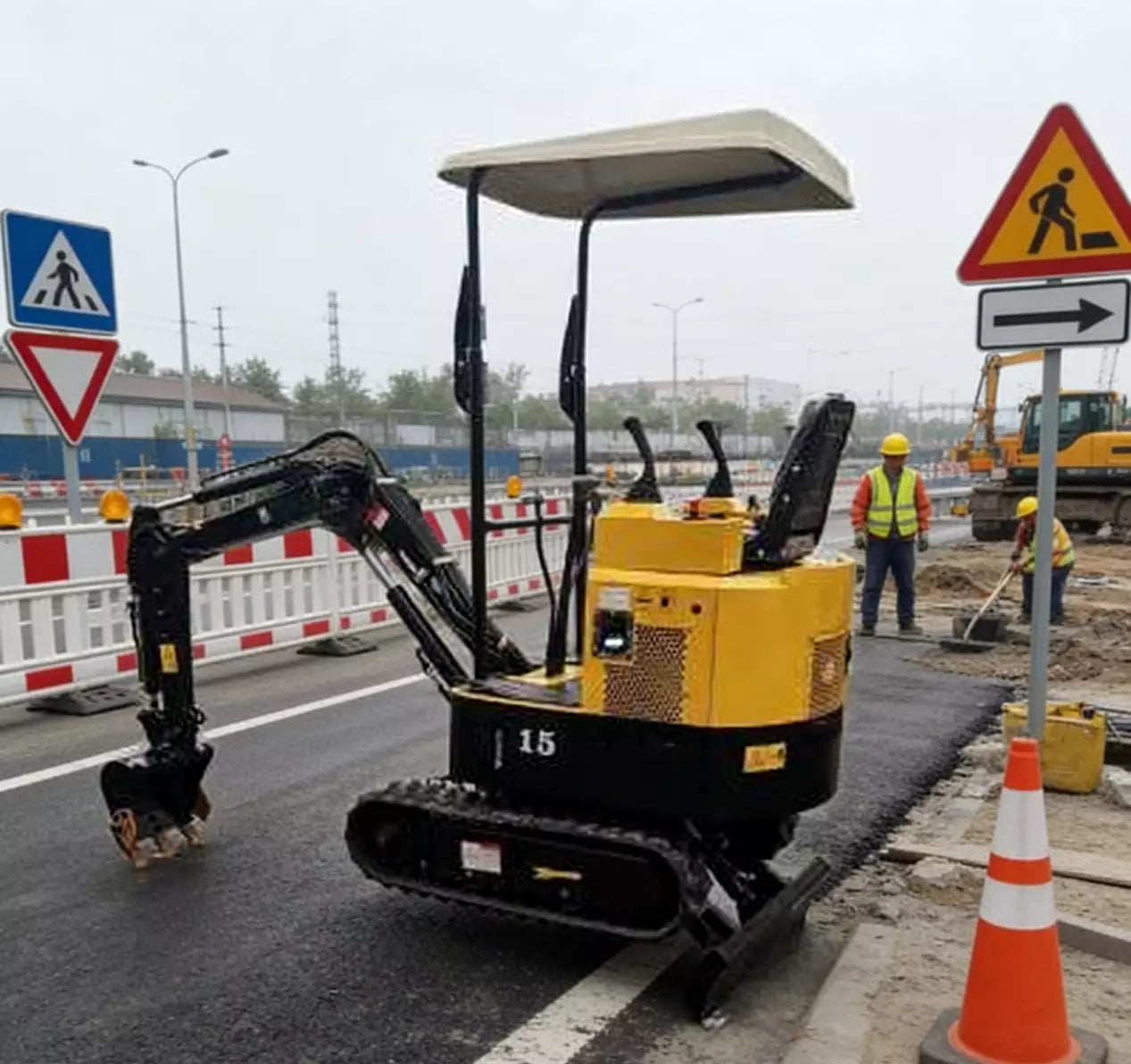

Mini Excavator

When excavating sidewalks or renovating green belts, the biggest fear is cutting underground pipelines. The PIVOT mini excavator can precisely control the digging depth with an error of ≤3cm, effectively avoiding cables and water pipes. With a body width of 980mm, it can operate flexibly on sidewalks and auxiliary roads. Even more remarkably, after removing the cab, it can be transported via elevator to a rooftop garden for renovation—something large excavators simply cannot do.
Power: 13.6kW
Operating Weight: 1200kg
Bucket Capacity: 0.04m³
Maximum Digging Depth: 2.3m
Maximum Digging Height: 3.6m
Maximum Unloading Height: 2.5m
Travel Speed: 2.5km/h
Climbing Ability: 30°
Ground Pressure: 28kPa
Learn More

Comparison of mini excavator and manual excavation

Comparison Dimensions

Manual excavation

PIVOT Mini Excavator

Excavation accuracy

Relies on experience

±3cm

Attachment Extensions

—

Can be equipped with hydraulic breakers, log grapples, etc.

Customer Value

Engineer Value

Engineer Value

Skirt steer loaders are 1.5 meters wide, precisely matching standard door widths.

Spider crane dimensions can be used to assess the feasibility of indoor operations.

Handheld rollers have a vibration force of 25kN, with clearly defined compaction parameters.

Procurement Value

Procurement Value

One skid steer loader can be equipped with multiple attachments, reducing the number of equipment purchased.

Spider cranes are wirelessly remote-controlled, ensuring high safety.

All product parameters are transparent, facilitating bidding.

Owner Value

Owner Value

One machine can perform multiple tasks, increasing equipment utilization.

Same-day entry and exit from the site reduces the risk of traffic fines.

Low-noise design (skirt steer loaders 75-85dB) allows for nighttime construction.
