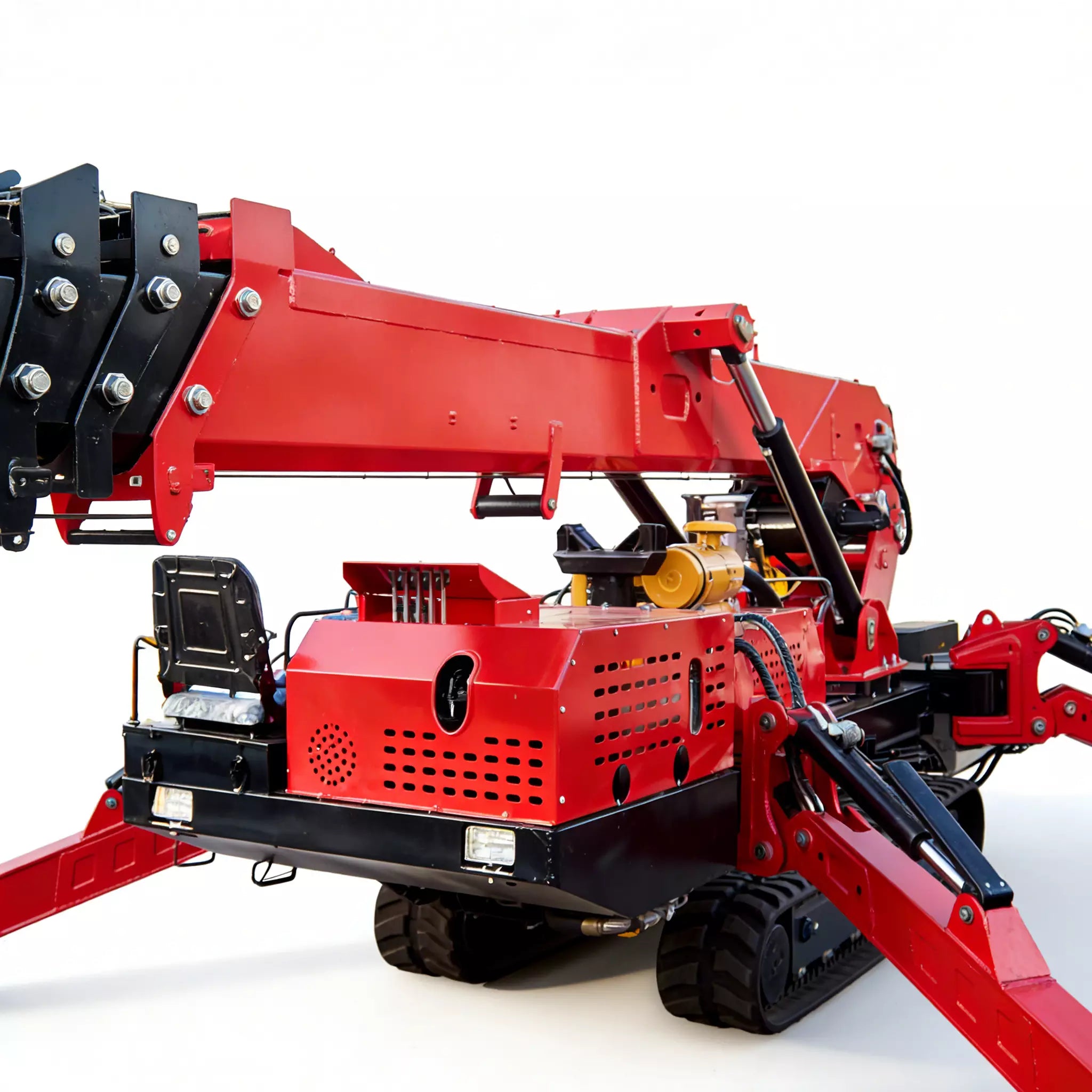

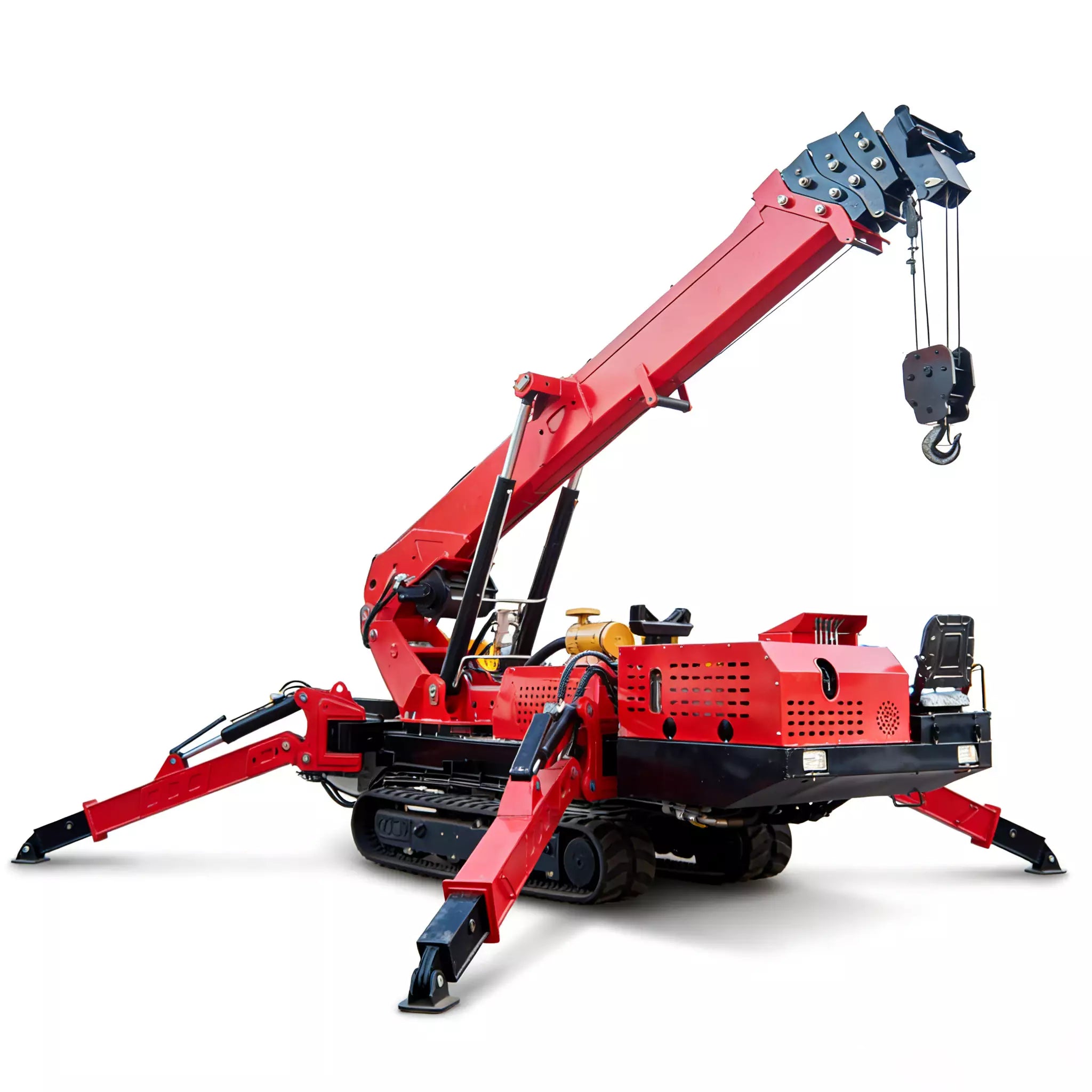

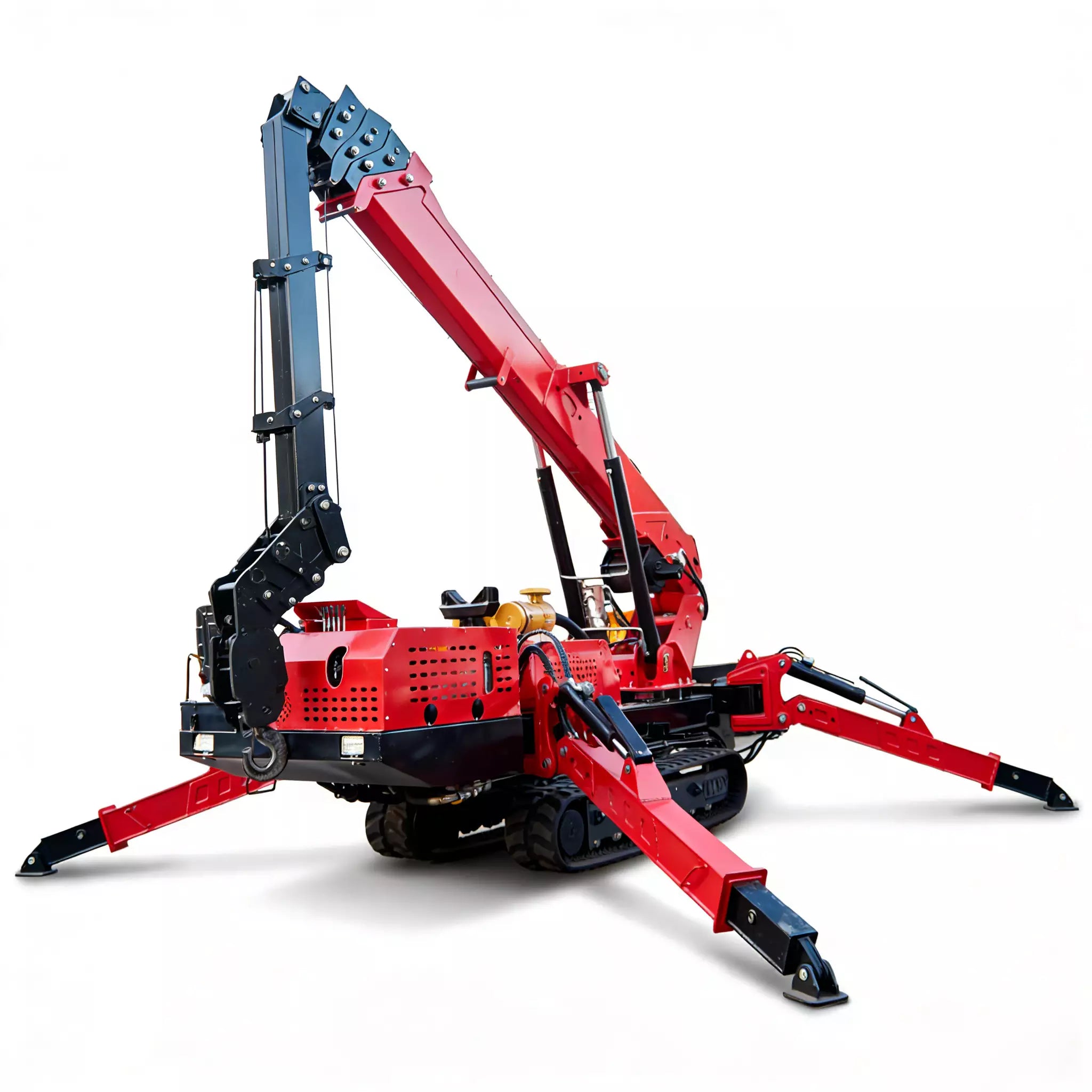

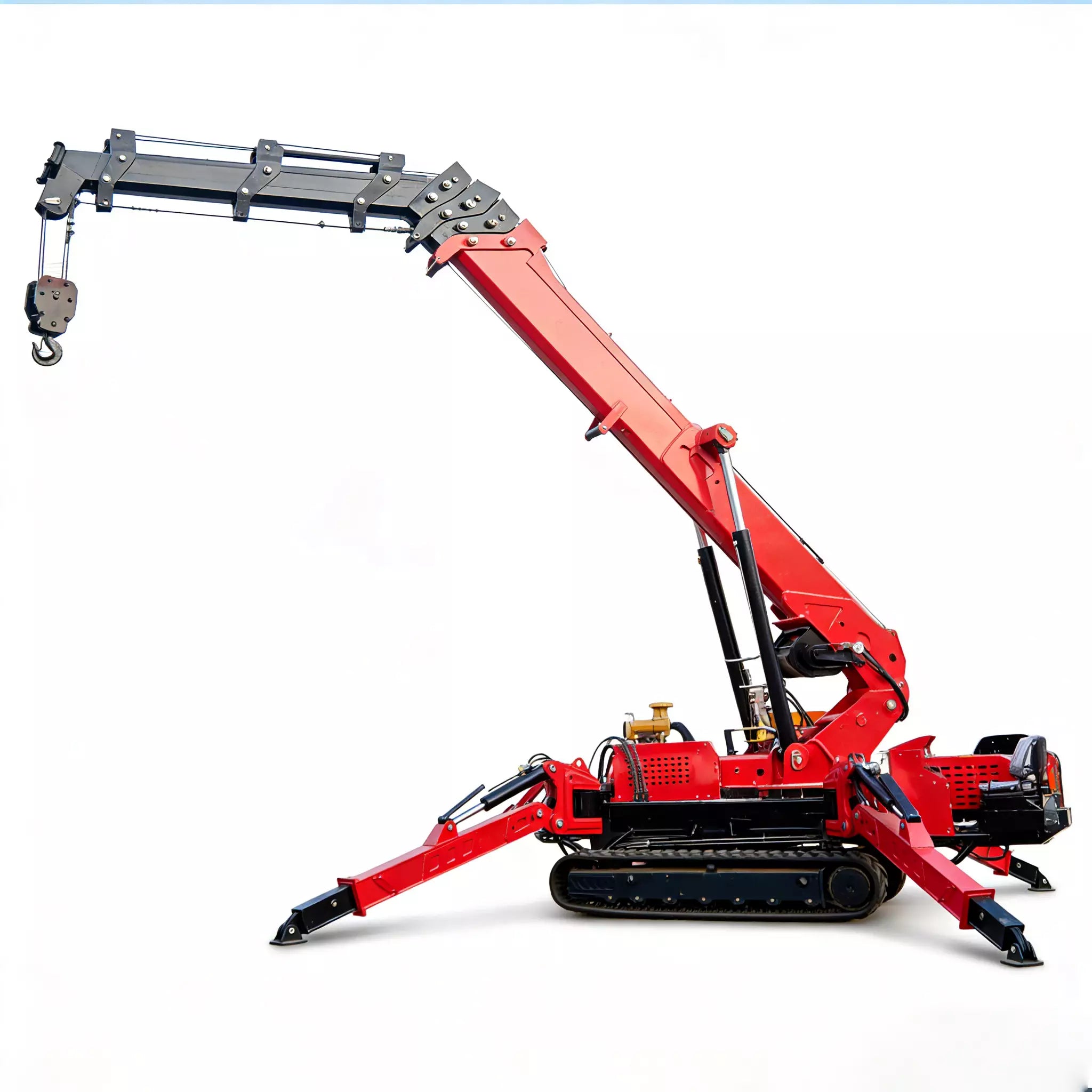

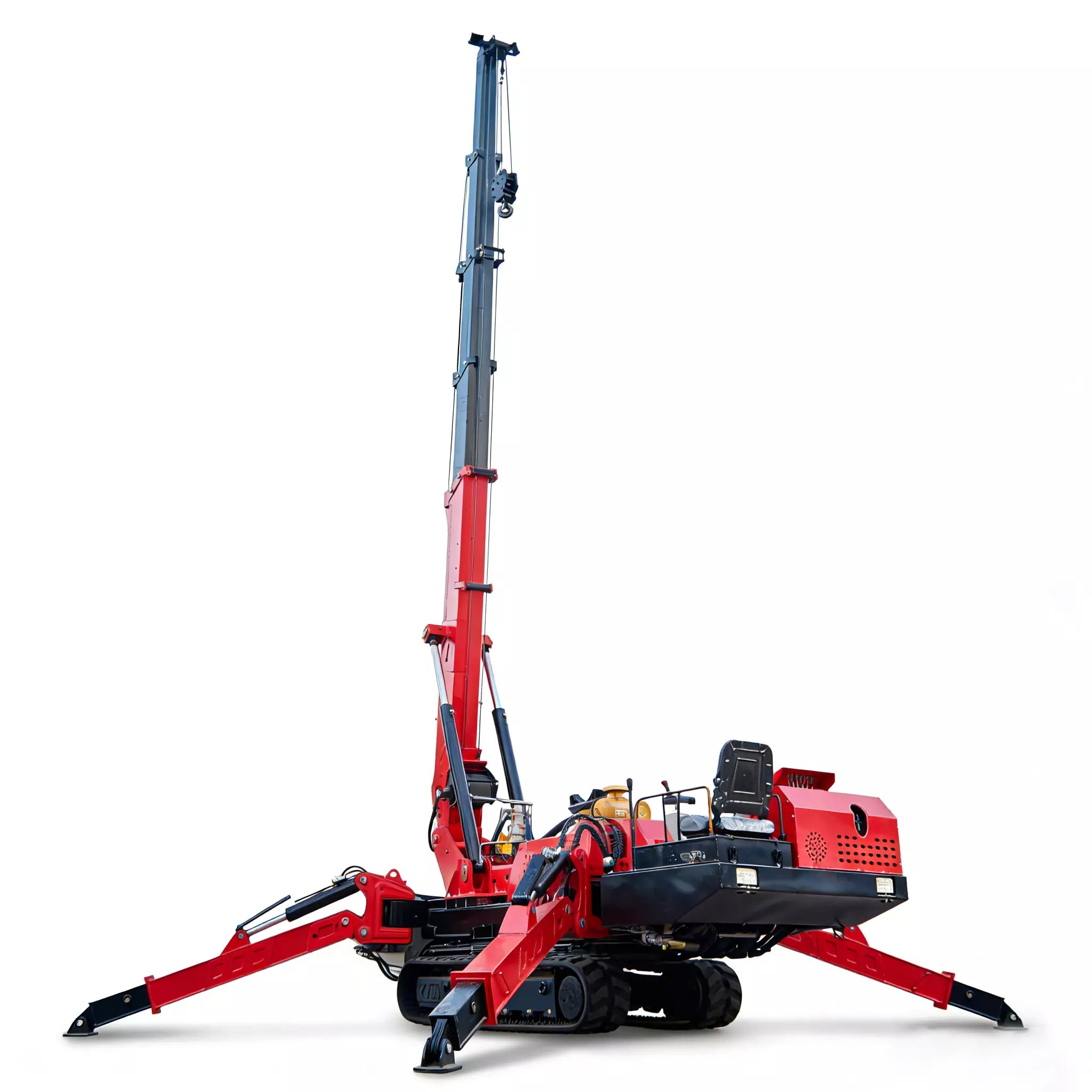

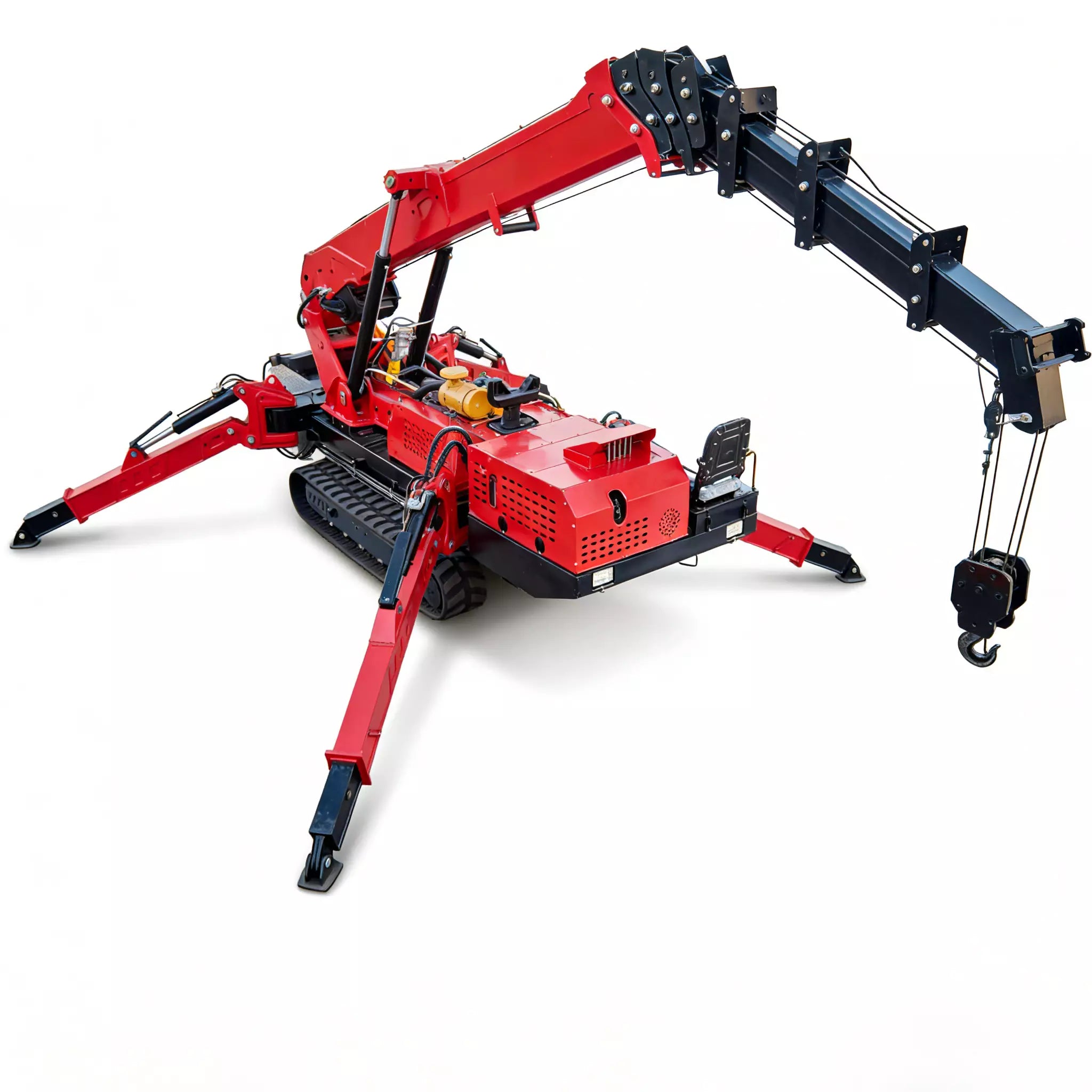

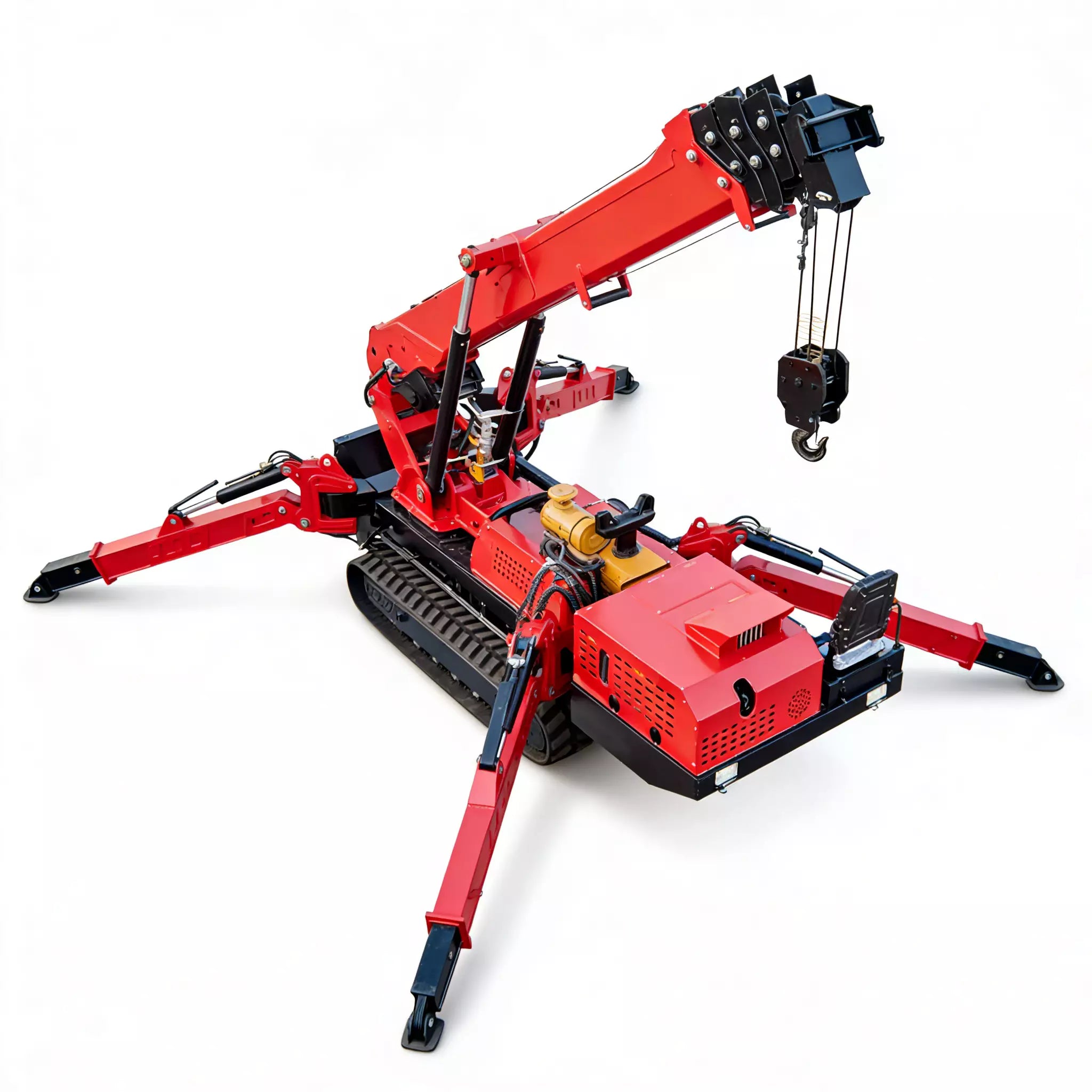

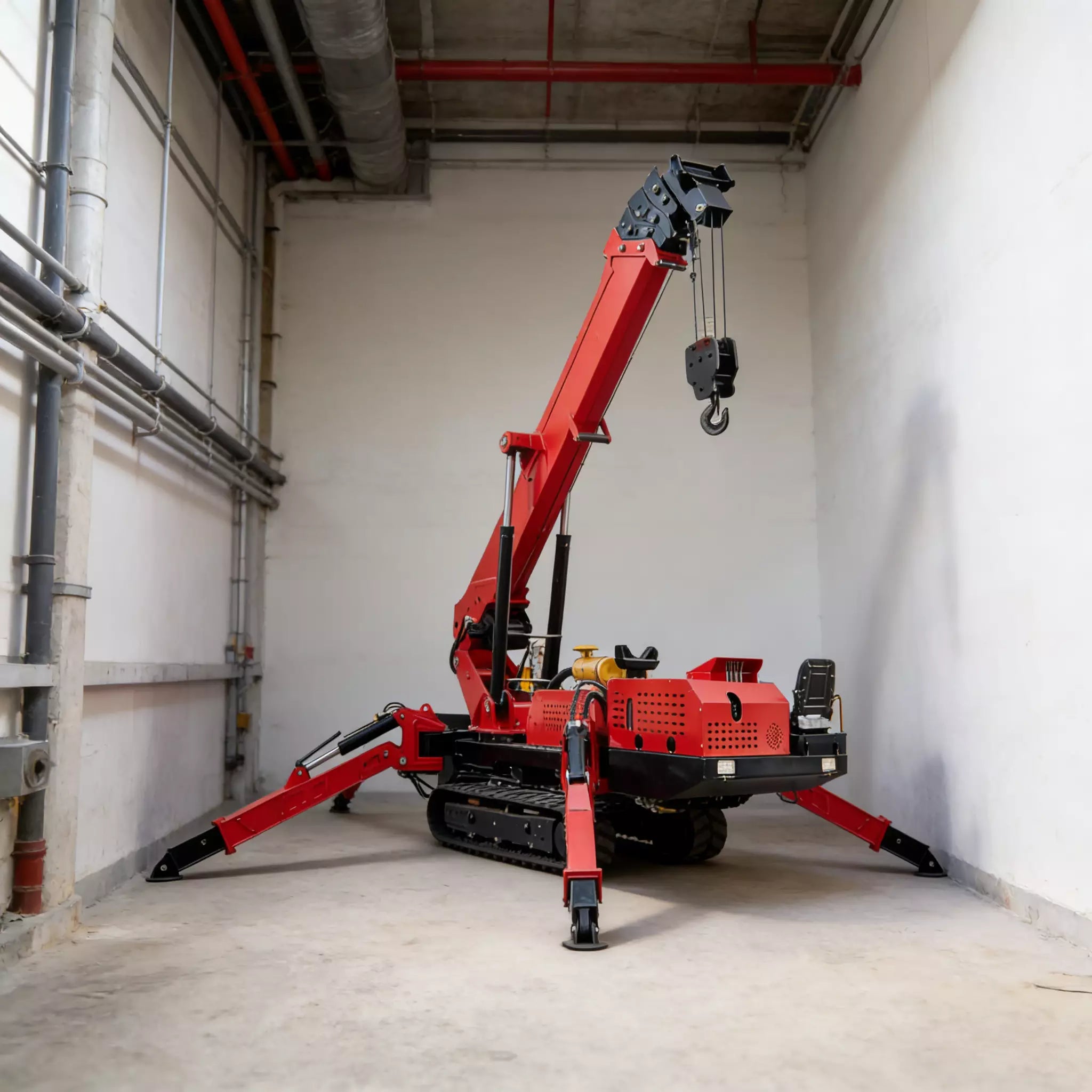

The spider crane can be operated wirelessly or manually. Operators can operate from a safe location away from the crane, improving both work efficiency and safety. Its small size and light weight provide excellent flexibility and mobility, allowing it to easily enter indoor spaces, multi-story buildings, and confined spaces for lifting and hoisting operations. Furthermore, its operation is simple, requiring relatively low operator skill. Spider cranes are widely used in construction and emergency repair work in power, railway, subway, highway, curtain wall, and indoor steel structure projects. They are also suitable for large-scale material storage, large-scale manufacturing, and can be used for equipment maintenance and installation in factory workshops, as well as glass curtain wall maintenance and installation.
| product | 2-ton spider crane XZ02A | 3-ton spider crane | 3-ton spider crane | 3-ton spider crane | 5-ton spider cra |
| rated suspended mass | 2000kg | 3000kg | 3000kg | 3000kg | 5000kg |
| Number of crane boom sections | 1.8-meter main boom * 4-section boom | 2.5-meter main boom * 5-section boom | 2.5-meter main boom * 6-section boom | 3.2-meter main boom * 5 boom sections | 4.5-meter main boom * 5-section boom |
| Full extension arm length | 6m | 9m | 10.5m | 11.7m | 15.8m |
| Maximum lifting height | 6.5m | 10m | 11.5M | 12.7M | 17m |
| Amplitude Angle | 0~80° | 0~80° | 0~80° | ||
| Rotation angle | 0~360° | 0~360° | 0~360° | ||
| walking speed | 0~2.0km/h | 0~2.0km/h | 0~2.0km/h | ||
| Maximum span of outriggers | 5000mm front * 3400mm side | 5100mm*4700mm | 6600mm*6100mm | ||
| minimum span of outriggers | 3600mm front * 2700mm side | 3800mm*3900mm | 4900 mm*5100mm | ||
| Engine (can be replaced as needed) | Single-cylinder diesel engine | Changchai 390 (3-cylinder) / Youpu (2-cylinder) | Yunnei 490 diesel engine, 57 horsepower | ||
| motor | 380v/4kw or 220v/4kw | 380v/7.5kw or 220v/5.5kw | 380v/11kw | ||
| Track size | 1200*180mm | 1600*230mm | 2600*350mm | ||
| operating system | Electromagnetic proportional valve (load-sensitive valve) can perform millimeter-level micro-motion and is highly sensitive to operation. | ||||
| wireless remote control | Analog remote control, including an LCD display (if equipped with a torque converter, it can display computer data synchronously), allows for precise operation and long-distance operation. | ||||
| Overall vehicle dimensions | 2050*800*1450mm | 3000*1000*1800mm | 3200*1000*1900mr | 3600*1000*1800mm | 5000*1480*2190mm |
| Total vehicle weight | 1680kg | 2900kg | 3150kg | 3050kg | 7200kg |
1. Can this spider crane be used in an elevator?
Yes, the overall dimensions are 2.8 × 0.8 × 1.7 meters, allowing it to be used indoors via a standard freight elevator.
2. What is the minimum passability?
Only 0.8 meters, suitable for narrow alleys, substations, subway stations, and other space-constrained locations.
3. What are the lifting capacity and lifting height?
Rated lifting capacity is 1 ton, maximum lifting height is 16 meters.
4. Can it operate stably on slopes?
Yes, the four hydraulic outriggers can be independently leveled, adapting to uneven ground such as steps and slopes.
5. How is it operated?
Wireless remote control operation, allowing the operator to stand in a safe position, eliminating blind spots.
6. How is it shipped overseas?
Plywood crates are used for packaging, and it is shipped by container.
7. Is an English instruction manual and training provided?
An English operation manual and video tutorials are provided.
8. Can the boom extend or retract?
The boom is a multi-section hydraulic telescopic boom with a maximum lifting height of 16 meters and a wide working radius.
9. What is the crane's weight? Are there any requirements for the floor slab?
The entire machine weighs 1.8 tons. The crawler tracks have low ground pressure, allowing safe operation on ordinary floor slabs without reinforcement.
10. Can it be used to lift glass curtain walls?
Yes, with the aid of suction cups or specialized lifting tools, precise positioning can be achieved through remote control.
11. Are there any overseas agents?
We are expanding our global agent network. Please contact us.
